ACM CLADDING RECORDS

Capital Quarter, Cardiff

Left to right: No. 4, No. 3, No. 2 Capital Quarter ## Building / block / estate Capital Quarter

Address

Tyndal Street Cardiff

Local Authority

Cardiff

Storeys / height

9

Cladding

ACM, Curtain Wall

Owner / Landlord

Completed 2016. 85,077 sq ft Grade A office, BREEAM Excellent, 2.70m floor to ceiling. Developer and contractor JR Smart, who wear both hats. Sold freehold to Tesco Pension Fund for 23m in May 2018. Tenants have included Public Health Wales, Opus Energy and Atkins. ACM remediated on Nr2

Original design architect

Morgan 2 Hayman

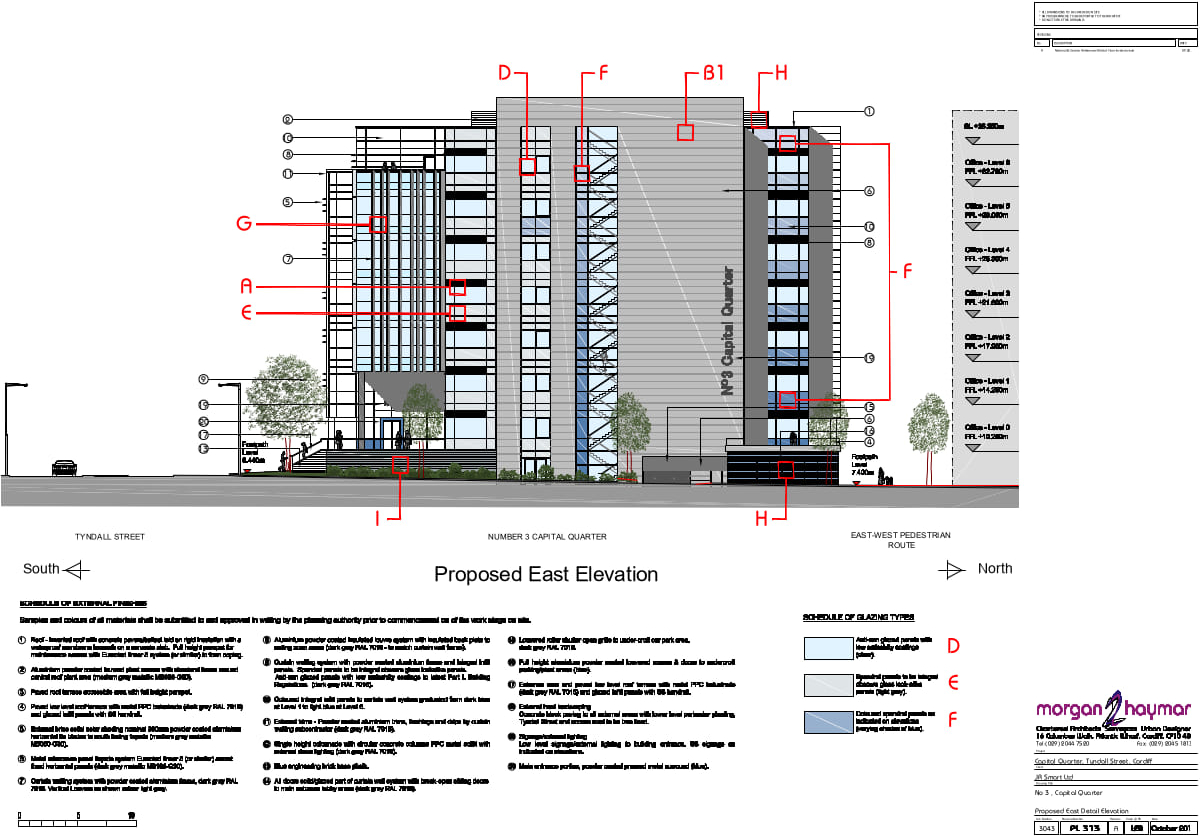

16/00303/MJR Partial discharge - 11/05/2016 Nr 3 Capital Quarter

  • DISCHARGE CONDITIONS 2 (EXTERNAL FINISHING MATERIALS), 3 (ARCHITECTURAL DETAILING OF MAIN ELEVATIONS), 4 (HARD AND SOFT LANDSCAPING), 7 (CYCLE PARKING), 8 (CAR PARKING) AND 11 (SCHEME OF CONSTUCTION MANAGEMENT) OF PLANNING APPLICATION 15/02766/MJR
  • Block H Capital Quarter Tyndal Street Cardiff CF10 4BZ
  • Agent: Morgan 2 Hayman
  • Material B1: Horizontal jointing 500/600mm panel with 20mm shadow gap Metal rainscreen panel system Euroclad Alpolic - Linear 5 system Dark Grey Metallic Ref:MB106

16/01749/MJR - Approved 13/04/2017. Nr 4 Capital Quarter

  • HYBRID APPLICATION COMPRISING OF FULL DETAILED APPLICATION FOR THE PROPOSED MIXED-USE COMMERCIAL OFFICE BUILDING AT NUMBER 4 CAPITAL QUARTER AND OUTLINE APPLICATION FOR REMAINING PARTS OF WESTERN COURTYARD AT PLOT J AND L FOR RESIDENTIAL AND ASSOCIATED PUBLIC REALM AND LANDSCAPING
  • Plot 1 J And L Western Courtyard Capital Quarter Tyndall Street Atlantic Wharf Cardiff
  • Agent: Morgan 2 Hayman

Remediation ref/date

22/00397/MJR - Approved 13 Apr 2022. No 2 Capital Quarter

  • REPLACE ALL EXISTING ACM CLADDING PANELS
  • 2 Capital Quarter Tyndall Street Atlantic Wharf
  • There is no corresponding application for replacement of ACM to Nr 3 Capital Quarter.
  • Agent: IG9 Limited

Remediation lead

Agent: IG9 Limited

Litigation

-

Source / Evidence / Links


Item 6/B1: Metal rainscreen panel facade system Euroclad linear 5 (or similar) secret fixed horizontal panels (dark grey metallic MB106-G30)


16_00303_MJR-3043_N_3_CAPITAL_QUARTER__BLOCK_H__MATERIAL_SAMPLES-1766033.pdf
B1: Horizontal jointing 500/600mm panel with 20mm shadow gap Metal rainscreen panel system Euroclad Alpolic - Linear 5 system Dark Grey Metallic Ref:MB106
https://web.archive.org/web/20160821083749/http://www.alpolic.com/alpolic-intl/product_alpolic.html - Captured 25 May 2016

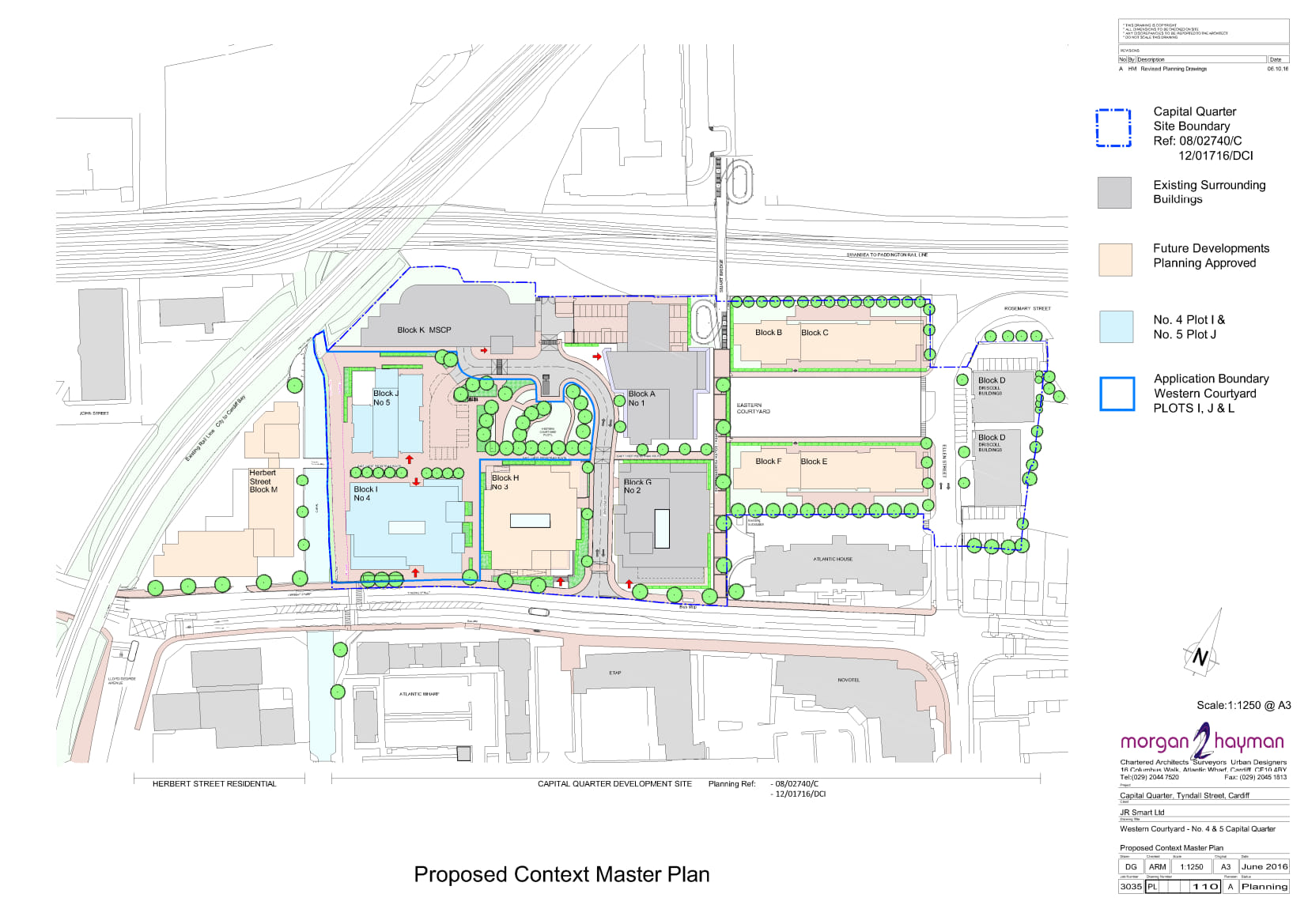

16_01749_MJR-3035_PL-110A_-_PROPOSED_CONTEXT_MASTERPLAN-1843537
